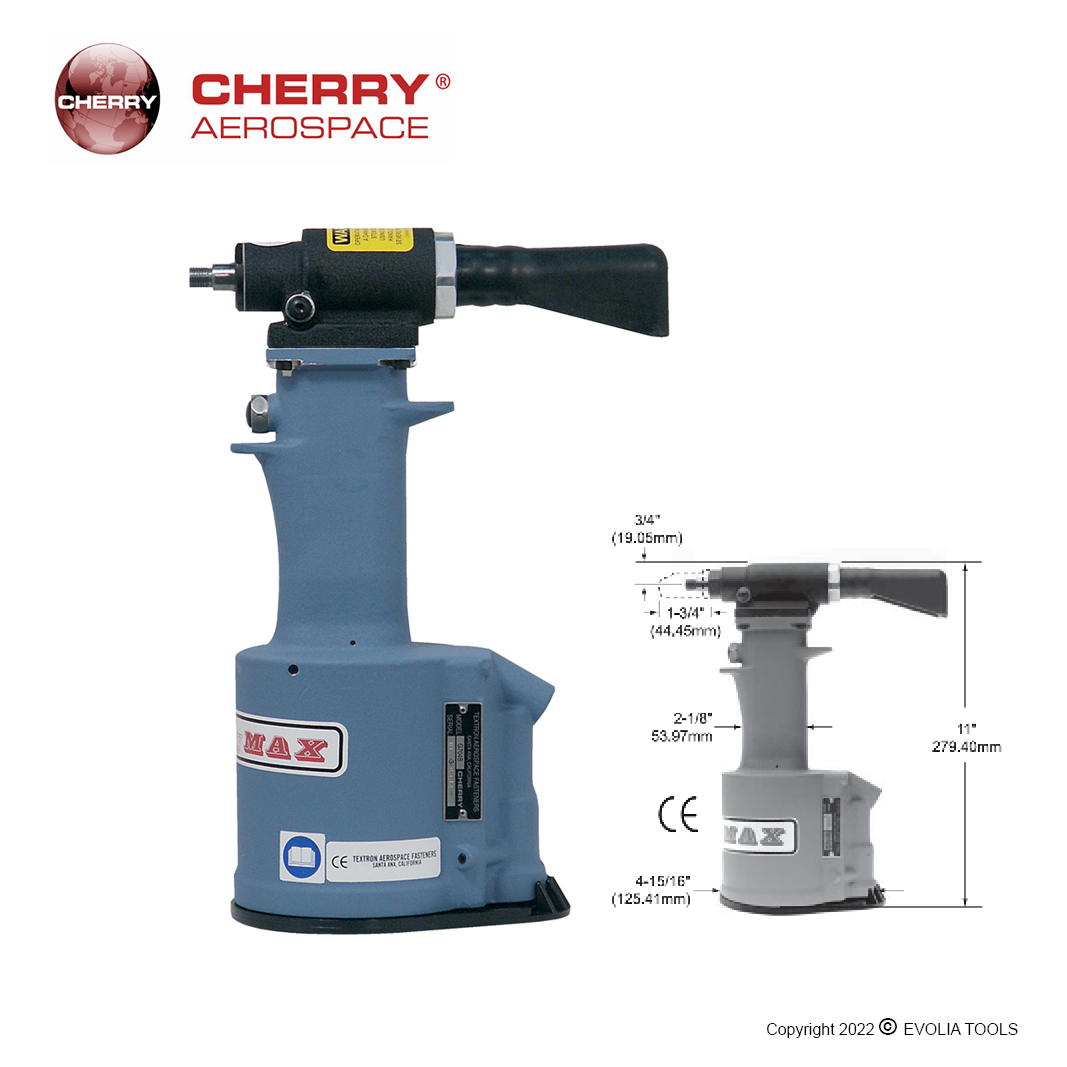

G704B Lightweight CherryMAX®Power Tool

From $1,365.00

Description

The G704B riveter is a medium duty, pneumatic-hydraulic

tool designed, but not limited to, optimum installation of the

CherryMax® fasteners. It features the “CherryMax® mounting

system’’ supported by a wide variety of pulling heads and

adapters supporting most of our blind fastening system.

Technical

The G704B is a pneumatic-hydraulic tool designed especially for installation of CherryMax® and nut plate rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.

This tool utilizes straight, offset and right angle pulling heads, all of which can install -4, -5 and -6 diameter CherryMax® bulb type rivets in all head styles, materials and grip lengths. Extensions are available for extending the pulling heads to reach limited access areas.

A comfortable grip for one handed operation in any position.



Specifications

Air Pressure 90 PSI (6.2 bar) min. / 110 PSI (7.6 bar) max.

Stroke .510 Inch (12.954 mm)

Pulling Force 3100 lbs (13.79 kn) @ 90 PSI (6.2 bar)

Cycle Time Approximately one second

Weight 4 1/4 lbs (1.93 kg)

Noise Level 71 dB (A)

Vibration Less than 2.5 m/s2

Air Consumption .16 SCF/cycle (4.53 L/cycle)

CHERRY CATALOGUE

References

The CherryMAX®G704B is a pneumatic-hydraulic tool designed specifically for the most efficient installation ofCherryMAX®rivets.

Its durable, all metal housing makes this extremely robust tool ideal for use in rugged shop environments. This tool utilizes straight, offset and right angle pulling heads, all of which can install -4, -5, and -6 diameter CherryMAX®bulb type rivets in all head styles, materials and grip lengths.

Extensions are available for extending the pulling heads to reach limited access areas.
