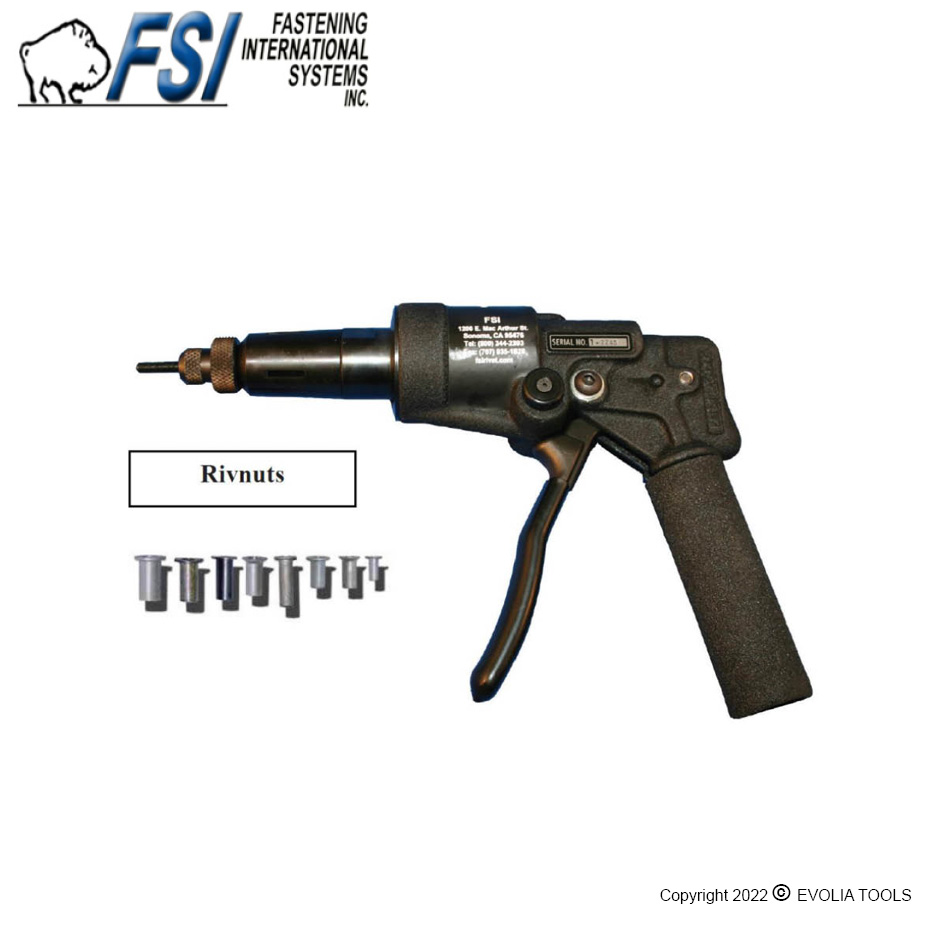

D700VM Hand Hydraulic Riveter for Rivet Nuts

Back to results

D700VM Hand Hydraulic Riveter for Rivet Nuts

From $1,029.00

Evolving from the highly successful D-100 Blind Riveter the D-700C addresses user needs for an even more versatile, powerful, reliable, and field repairable tooling system.

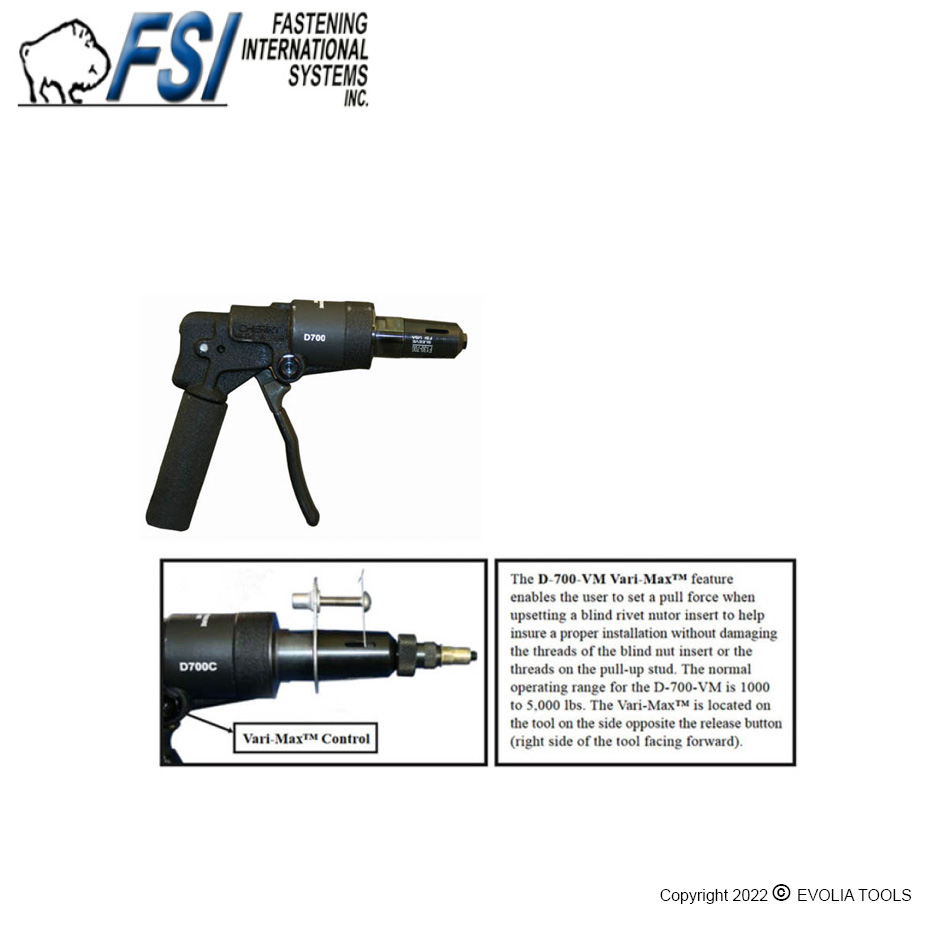

The D-700-VM Vari-Max™ feature enables the user to set a pull force when upsetting a blind rivet nut or insert to help insure a proper installation without damaging the threads of the blind nut insert or the threads on the pull-up stud. The normal operating range for the D-700-VM is 1000 to 5,000 lbs. The Vari-Max™ is located on the tool on the side opposite the release button Vari-Max™ Control (right side of the tool facing forward).

Evolving from the highly successful D-100 Blind Riveter the D-700C addresses user needs for an even more versatile, powerful, reliable, and field repairable tooling system. A two stage valve permits a greatly reduced wrist effort for installation of a wide variety of straight pull blind fasteners including all CherryMax® style (M7885) blind rivets, Cherry Blind Bolts (MS90353/54 S/U) (thru 3/16” dia.), Rivnuts® thru 3/8” and most blind inserts. The D-700C riveter can be provided with the Vari-Max™ adjustable pressure control (D-700-VM) to permit precise setting of pulling when installing blind fasteners. The D-700C maybe used with any of the nosepieces and accessories supplied in the D-100 series kits.

The D-700C may be utilized to install a variety of blind fastners.Ita can be used with any of the nosepieces and accesories suppliedin all FSI Kits.

Installs All CherryMax®
thru 1/4” and Single
Action Blind Bolts thru
3/16” Diameter

Rivnuts® and Threaded
Inserts

5,000 lbs of Pulling
Force and More Than
3/4” Stroke

Field Repairable

D-700C BROCHURE

D-700C INSTRUCTION
