G84 Lightweight Lockbolt Tool

Back to results

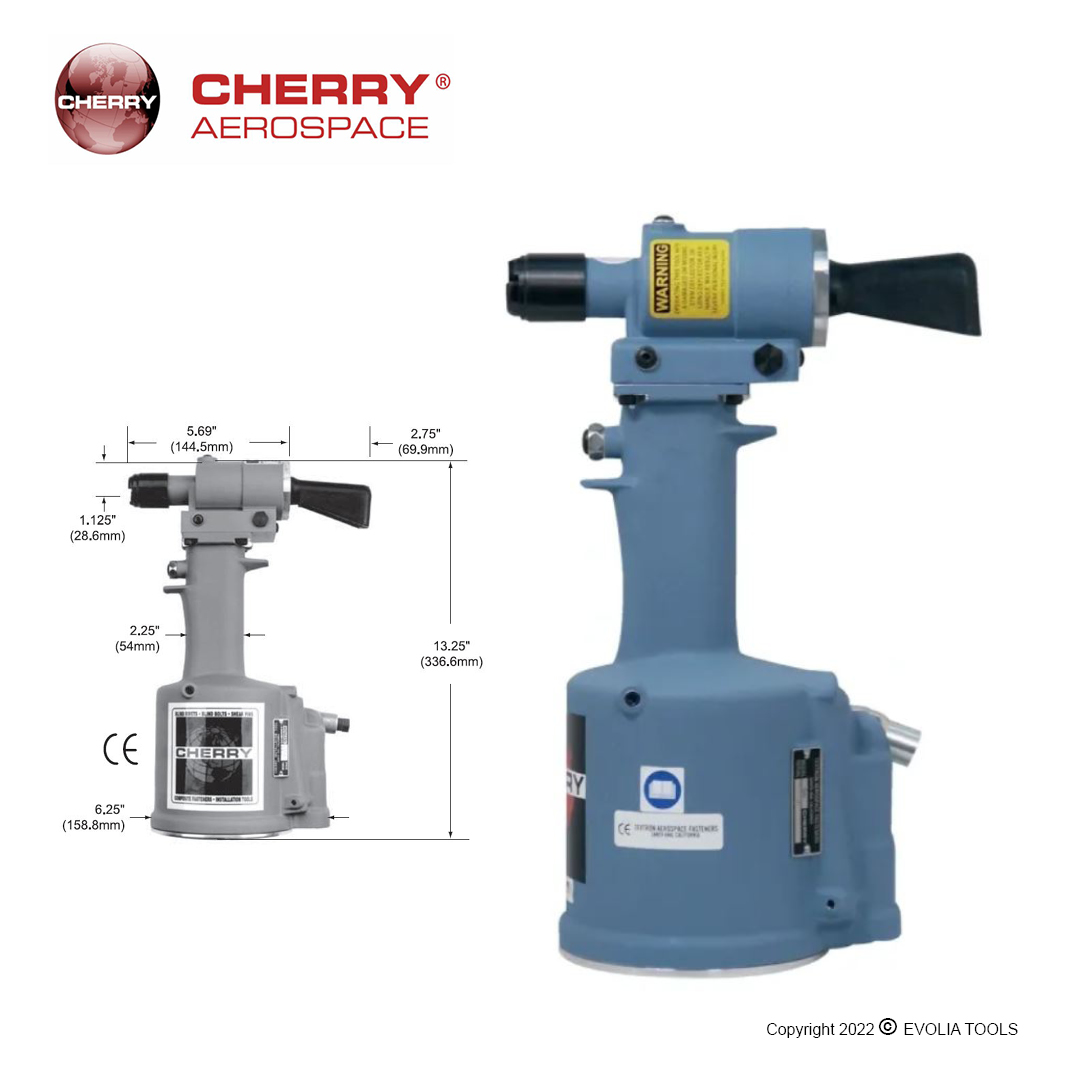

G84 Lightweight Lockbolt Tool

From $2,150.00

The G84 pneumatic-hydraulic lockbolt installation tool is a rugged production tool designed for high speed, reliable installation of the most popular sizes of aircraft lockbolts.

The tool incorporates a bayonet attachment for quick change of pulling heads.

Weighing only 7.70 pounds (3.5 kg), this tool has been designed with many ergonomic features: less recoil, low noise and a comfortable fit in the operator‘s hand. It can be operated in any position with one hand. The tool can install blind bolts and blind rivets

Specifications

Air Pressure 90 PSI (6.2 bar) min./110 psi (7.6 bar) max.

Stroke 9/16 inch (14.3 mm)

Pulling Force 5,750 lbs. (25.6 kN) @ 90 PSI (6.2 bar),

1200 lbs. (5.34 kN) on return stroke

Weight 7.70 lbs. (3.5 kg)

Noise Level dB (A)

Vibration less than 2.5 M/S2

Air Consumption .29 SCF/cycle (8.21L/cycle)

TECHNICAL MANUAL G84

References

Description

The G84 pneumatic-hydraulic lockbolt installation tool is a rugged production tool designed for high speed, reliable installation of the most popular sizes of aircraft lockbolts.

The tool incorporates a bayonet attachment for quick change of pulling heads.

Weighing only 7.70 pounds (3.5 kg), this tool has been designed with many ergonomic features: less recoil, low noise and a comfortable fit in the operator‘s hand. It can be operated in any position with one hand. The tool can install blind bolts and blind rivets (see installation chart
